HW 4 Solutions
ENGR 21, Fall 2026.
Solutions
1 Python function to read IEEE floats
Computers store numbers in memory using a series of zeros and ones. These zeros and ones are then interpreted as floating-point numbers according to the standard scheme that we learned about in class.
In this question, you will write a Python function that can interpret a string of zeros and ones as a decimal number using the IEEE standard. Your function should work for 16-bit, 32-bit and 64-bit numbers.
Name your function readIEEEfloat. It should take a single argument in the form of a string and should return the value as a number.
Convert binary integer to decimal integer
def bin_to_dec_int(num):
# Converts binary integer to decimal integer
# num is a string, interpreted as a binary integer.
s = len(num)
total_value = 0
for index in range(s):
power = s-index-1
digit = int(num[index])
value = (2 ** power) * digit
total_value += value
return total_valueConvert binary fraction to decimal fraction
def bin_to_dec_frac(num):
# Converts binary fraction to decimal fraction.
# num is a string of 0's and 1's.
# If num = 1010, this function interprets it as
# 1 * (1/2)^1 + 0 * (1/2)^2 + 1 * (1/2)^3 + 0 * (1/2)^4.
# The first bit multiplies (1/2). The second bit multiplies (1/4). The third bit multiplies (1/8), and so on.
# for example, in the IEEE format, a 16-bit number could have the significand
# 1.0011010101
# This function can be used to read the string of bits AFTER the "decimal point" and
# returns the value of the resulting fraction in decimal form as a 'float'.
# The returned value must always be less than 1.
s = len(num)
total_value = 0
for index in range(s):
power = -index - 1
digit = int(num[index])
value = (2 ** power) * digit
total_value += value
return total_valueCombine
def readIEEEfloat(num):
# Interpret num, type string, as a 16-bit, 32-bit or 64-bit binary number stored
# in IEEE format. Return the answer as an object of type float.
if len(num) == 16 or len(num) == 32 or len(num) == 64:
# First, take out the sign bit
signbit = int(num[0])
sign = -1 if signbit == 1 else 1
# Then, take out the exponent and significand bits
if len(num) == 16:
exponent = bin_to_dec_int(num[1:6])
significand = bin_to_dec_frac(num[6:])
bias = 15
elif len(num) == 32:
exponent = bin_to_dec_int(num[1:9])
significand = bin_to_dec_frac(num[9:])
bias = 127
elif len(num) == 64:
exponent = bin_to_dec_int(num[1:12])
significand = bin_to_dec_frac(num[12:])
bias = 1023
# Then put it together.
return sign * (1+significand) * 2 ** (exponent - bias)
else:
print("Input must be a string of length 16, 32 or 64")
return None2 Floating-point numbers
2.1 Conversion to fractional form
Interpret the following 16-bit floating-point numbers as irreducable fractions. Also write an approximate decimal representation of your fractions.
0b1001110000101110, a.k.a.0x1C2E0b0100110001101010, a.k.a.0x4C6A
We first divide up the 16 bits of
0b1001110000101110into:- Sign bit:
1— this number is negative - Exponent bits:
00111— in decimal form, this is 7. - Significand bits:
0000101110
Using this information, we can write this number in the following way: \[-1.0000101110_2 \times 2^{7-15}\] which is equal to \[- \left( 1 + 2^{-5} + 2^{-7} + 2^{-8} + 2^{-9} \right) \times 2^{-8}\] We can now write it out as fractions: \[- \left( 1 + \frac{1}{32} + \frac{1}{128} + \frac{1}{256} + \frac{1}{512} \right) \times \frac{1}{256}\] \[= - \left( \frac{512}{512} + \frac{16}{512} + \frac{4}{512} + \frac{2}{512} + \frac{1}{512} \right) \times \frac{1}{256}\] \[= - \left( \frac{535}{512} \right) \times \frac{1}{256} = \boxed{- \frac{535}{131072}} \approx -0.00408\]
- Sign bit:
We first divide up the 16 bits of
0b0100110001101010into:- Sign bit:
0— this number is positive - Exponent bits:
10011— in decimal form, this is 19. - Significand bits:
0001101010
Using this information, we can write this number in the following way: \[+1.0001101010_2 \times 2^{19-15}\] which is equal to \[\left( 1 + 2^{-4} + 2^{-5} + 2^{-7} + 2^{-9} \right) \times 2^{4}\] We can now write it out as fractions: \[\left( 1 + \frac{1}{16} + \frac{1}{32} + \frac{1}{128} + \frac{1}{512} \right) \times 16\] \[= \left( \frac{512}{512} + \frac{32}{512} + \frac{16}{512} + \frac{4}{512} + \frac{1}{512} \right) \times 16\] \[= \left( \frac{565}{512} \right) \times 16 = \boxed{\frac{565}{32}} \approx 17.656\]
- Sign bit:
2.2 Large and small Numbers
Use the web app Float Toy to fill the following table. All numbers should be positive, and should be given in scientific notation in decimal form up to the number of significant figures given by the web app or up to 3 significant figures after the decimal point, whichever is smaller.
| Number | 16-bit | 32-bit | 64-bit |
|---|---|---|---|
| Smallest subnormal non-zero number | \(5.97 \times 10^{-8}\) | \(1 \times 10^{-45}\) | \(5 \times 10^{-324}\) |
| Second smallest subnormal non-zero number | \(1.2 \times 10^{-7}\) | \(2.8 \times 10^{-45}\) | \(1 \times 10^{-323}\) |
| Smallest normal\(^*\) non-zero number | \(6.104 \times 10^{-5}\) | \(1.175 \times 10^{-38}\) | \(2.225 \times 10^{-308}\) |
| Second smallest normal\(^*\) non-zero number | \(6.11 \times 10^{-5}\) | \(1.175 \times 10^{-38}\) | \(2.225 \times 10^{-308}\) |
Largest non-NaN number |
\(6.550 \times10^{4}\) | \(3.376 \times10^{38}\) | \(1.797 \times 10^{308}\) |
Second largest non-NaN number |
\(6.547 \times10^{4}\) | \(3.376 \times10^{38}\) | \(1.797 \times 10^{308}\) |
\(^*\) i.e., not subnormal.
3 Gap Size in floating point numbers
3.1 Gaps between 16-bit floating-point binary numbers
We would like to tabulate the ‘gap size’, which can also be called the increment size, between floating-point numbers. Two of the values in this table have been filled from the relevant sections of Lecture 8 here and here.
| Between | and | the gap is | or equivalently |
|---|---|---|---|
| \(2^{-14}\) | \(2^{-13}\) | … | |
| \(2^{-13}\) | \(2^{-12}\) | … | |
| \(2^{-12}\) | \(2^{-11}\) | … | |
| \(2^{-11}\) | \(2^{-10}\) | … | |
| \(2^{-10}\) | \(2^{-9}\) | … | |
| \(2^{-9}\) | \(2^{-8}\) | … | |
| \(2^{-8}\) | \(2^{-7}\) | … | |
| \(2^{-7}\) | \(2^{-6}\) | … | |
| \(2^{-6}\) | \(2^{-5}\) | … | |
| \(2^{-5}\) | \(2^{-4}\) | … | |
| \(2^{-4}\) | \(2^{-3}\) | … | |
| \(2^{-3}\) | \(2^{-2}\) | … | |
| \(2^{-2}\) | \(2^{-1}\) | … | |
| \(2^{-1}\) | \(2^{0}\) | … | |
| \(2^{0}\) | \(2^{1}\) | … | |
| \(2^{1}\) | \(2^{2}\) | … | |
| \(2^{2}\) | \(2^{3}\) | … | |
| \(2^{3}\) | \(2^{4}\) | \(2^{-7}\) | \(7.812 \times 10^{-3}\) |
| \(2^{4}\) | \(2^{5}\) | … | |
| \(2^{5}\) | \(2^{6}\) | … | |
| \(2^{6}\) | \(2^{7}\) | … | |
| \(2^{7}\) | \(2^{8}\) | … | |
| \(2^{8}\) | \(2^{9}\) | … | |
| \(2^{9}\) | \(2^{10}\) | … | |
| \(2^{10}\) | \(2^{11}\) | … | |
| \(2^{11}\) | \(2^{12}\) | \(2^{1}\) | \(2\) |
| \(2^{12}\) | \(2^{13}\) | … | |
| \(2^{13}\) | \(2^{14}\) | … | |
| \(2^{14}\) | \(2^{15}\) | … | |
| \(2^{15}\) | \(2^{16}\) | … |
| Between | and | the gap is | or equivalently |
|---|---|---|---|
| \(2^{-14}\) | \(2^{-13}\) | \(2^{-24}\) | \(3.051 \times 10^{-5}\) |
| \(2^{-13}\) | \(2^{-12}\) | \(2^{-23}\) | \(1.192 \times 10^{-7}\) |
| \(2^{-12}\) | \(2^{-11}\) | \(2^{-22}\) | \(2.384 \times 10^{-7}\) |
| \(2^{-11}\) | \(2^{-10}\) | \(2^{-21}\) | \(4.768 \times 10^{-7}\) |
| \(2^{-10}\) | \(2^{-9}\) | \(2^{-20}\) | \(9.536 \times 10^{-7}\) |
| \(2^{-9}\) | \(2^{-8}\) | \(2^{-19}\) | \(1.907 \times 10^{-6}\) |
| \(2^{-8}\) | \(2^{-7}\) | \(2^{-18}\) | \(3.814 \times 10^{-6}\) |
| \(2^{-7}\) | \(2^{-6}\) | \(2^{-17}\) | \(7.629 \times 10^{-6}\) |
| \(2^{-6}\) | \(2^{-5}\) | \(2^{-16}\) | \(1.525 \times 10^{-5}\) |
| \(2^{-5}\) | \(2^{-4}\) | \(2^{-15}\) | \(3.051 \times 10^{-5}\) |
| \(2^{-4}\) | \(2^{-3}\) | \(2^{-14}\) | \(6.103 \times 10^{-5}\) |
| \(2^{-3}\) | \(2^{-2}\) | \(2^{-13}\) | \(1.220 \times 10^{-4}\) |
| \(2^{-2}\) | \(2^{-1}\) | \(2^{-12}\) | \(2.441 \times 10^{-4}\) |
| \(2^{-1}\) | \(2^{0}\) | \(2^{-11}\) | \(4.882 \times 10^{-4}\) |
| \(2^{0}\) | \(2^{1}\) | \(2^{-10}\) | \(9.765 \times 10^{-4}\) |
| \(2^{1}\) | \(2^{2}\) | \(2^{-9}\) | \(1.953 \times 10^{-3}\) |
| \(2^{2}\) | \(2^{3}\) | \(2^{-8}\) | \(3.906 \times 10^{-3}\) |
| \(2^{3}\) | \(2^{4}\) | \(2^{-7}\) | \(7.812 \times 10^{-3}\) |
| \(2^{4}\) | \(2^{5}\) | \(2^{-6}\) | \(1.562 \times 10^{-2}\) |
| \(2^{5}\) | \(2^{6}\) | \(2^{-5}\) | \(3.125 \times 10^{-2}\) |
| \(2^{6}\) | \(2^{7}\) | \(2^{-4}\) | \(6.250 \times 10^{-2}\) |
| \(2^{7}\) | \(2^{8}\) | \(2^{-3}\) | \(0.125\) |
| \(2^{8}\) | \(2^{9}\) | \(2^{-2}\) | \(0.25\) |
| \(2^{9}\) | \(2^{10}\) | \(2^{-1}\) | \(0.5\) |
| \(2^{10}\) | \(2^{11}\) | \(2^{0}\) | \(1\) |
| \(2^{11}\) | \(2^{12}\) | \(2^{1}\) | \(2\) |
| \(2^{12}\) | \(2^{13}\) | \(2^{2}\) | \(4\) |
| \(2^{13}\) | \(2^{14}\) | \(2^{3}\) | \(8\) |
| \(2^{14}\) | \(2^{15}\) | \(2^{4}\) | \(16\) |
| \(2^{15}\) | \(2^{16}\) | \(2^{5}\) | \(32\) |
3.2 Precision for floats
The \(\pm\) symbol is often used to indicate the precision of a known quantity. For floating point numbers, it is appropriate to use \(x \pm y\) to represent a number, where \(y\) is half of the gap size in that part of the number line.
For example, we saw in lecture 8 that between 8 and 16, 16-bit floating point numbers have a gap size of \(1/128\) or \(0.0078125\). Half of this number is \(0.00390625\). If we now consider the 16-bit floating point number given by 0100100000001100, its value can be found to be equal to \(259/32 = 8.09375\). However, it would not be correct to write this number in decimal form with 5 significant figures after the decimal point. To see why, let us write it in \(\pm\) notation as follows.
\[8.09375 \pm 0.00390625\]
Thus, the 16-bit float 0100100000001100 would be used by a computer to represent any number in the range from \(8.09375-0.00390625\) to \(8.09375+0.00390625\) shown above. For example,
8.096728.095858.091758.09079
are all within the range shown above. These numbers agree in the first two digits after the decimal point, but in subsequent places, they disagree. Therefore, when representing the floating-point number 0100100000001100 in decimal form, it would not be appropriate to write more significant figures after the second one after the decimal point. Thus, the correct way to express it in decimal form would be \(\boxed{8.09}\), not \(8.09375\).
Using the discussion above as a template, write the following floating-point numbers in fractional form and then in decimal form using the appropriate number of significant figures after the decimal point.
- The 16-bit float given by
0b0001110000010000
Interpreting this number, we find that it is
\[1.0000010000_2 \times 2^{7-15} = \left( 1 + \frac{1}{2^6} \right) \times 2^{-8}\]
\[\frac{65}{64} \times \frac{1}{256} = \frac{65}{16384}\]
In decimal form, this can be written as 0.00396728515625000. The gap size in this part of the number line, for 16-bit floats, is \(2^{-18} \approx 0.000003814697\). Half of this number would be \(0.00000190734\).
We now compare the top and bottom of the range of possible values that this floating-point number is supposed to represent. These are: \(0.00396919249\) and \(0.00396537781\) respectively. These two agree up to the fifth place after the decimal point, but no further. Therefore, we should write this number as
\[0.00396 \quad \text{or} \quad 3.96 \times 10^{-3}.\]
Alternatively, you could also choose to round this up to \(3.97 \times 10^{-3}\) because the sixth place after the decimal point is always 5 or greater.
- The 16-bit float given by
0x3C10
Interpreting this number, we find that it is
\[\left( 1 + \frac{1}{2^{6}} \right) \times 2^{0}\]
\[\frac{65}{64} \times 1 = \frac{8388609}{536870912}\]
In decimal form, this can be written as 1.015625000. The gap size in this part of the number line, for 16-bit floats, is \(2^{-10} \approx 0.0009765625\). Half of this number would be \(0.00048828125\).
We now compare the top and bottom of the range of possible values that this floating-point number is supposed to represent. These are: \(1.01611328125\) and \(1.0151468\) respectively. These two agree up to the second place after the decimal point, but no further. Therefore, we should write this number as
\[1.01\] and with no further significant figures.
4 The Farmer Was Replaced
Download the save file here to complete this part of the homework.
4.1 Zero location
Write a function called zeroloc() that takes the drone back to the bottom-left corner.
def zeroloc():
xdist = get_pos_x()
ydist = get_pos_y()
for i in range(xdist):
move(West)
for i in range(ydist):
move(South)
return None4.2 Random plants
Write a script that plants a random plant (out of five options: Grass, Tree, Bush, Carrot, and Pumpkin) on each spot of the 6x6 farm. It should only do this once, without repeating.
Your script should import your zeroloc function from a different file, i.e., the first line of your script should be something like from <file name> import zeroloc.
The second line of your script should call the zeroloc function.
from positioning import zeroloc
zeroloc()
crops = {
"p": Entities.Pumpkin,
"t": Entities.Tree,
"g": Entities.Grass,
"c": Entities.Carrot,
"b": Entities.Bush
}
possible_crops = ["p","t","b","c","g"]
for row in range(get_world_size()):
for col in range(get_world_size()):
if get_ground_type() == Grounds.Grassland:
till()
if can_harvest():
harvest()
ind = random() *len(possible_crops) // 1
plant(crops[possible_crops[ind]])
move(East)
move(North)4.3 Waiting for crops to grow
Write a function called plant_and_wait that takes as argument a plant ‘object’, such as Entities.Carrot.
When this function is called with argument Entities.Tree, its behavior should be as shown in the gif below, i.e., it should plant a tree and do flips until the tree has fully grown, and then harvest it.

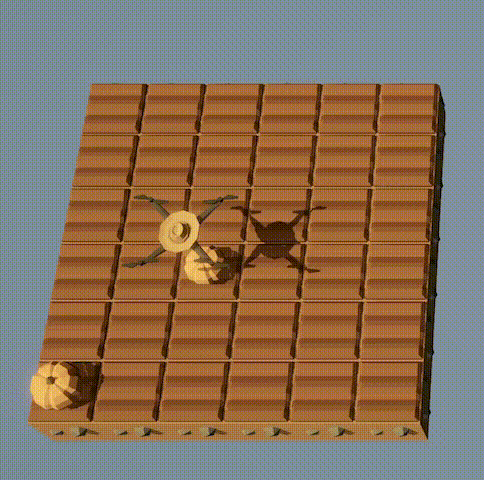

When this function is used to plant pumpkins, its behavior needs to be different. It should wait to check if the pumpkin grows up to be rotten, and if so, it should start over. As an illustration of this behavior, the following gif shows what your drone should do if you run the following code:
while True:
plant_and_wait(Entites.Pumpkin)
This function should not move the drone. It should till the soil if it is grassland (remember that tilling grass turns it into soil, but tilling soil turns it back into grass!)
def plant_and_wait(crop):
if get_ground_type() == Grounds.Grassland:
till()
if not crop == Entities.Pumpkin:
if can_harvest():
harvest()
plant(crop)
while not can_harvest():
do_a_flip()
harvest()
else:
plant(crop)
while not can_harvest():
do_a_flip()
if get_entity_type() == Entities.Dead_Pumpkin:
print("Death")
plant(Entities.Pumpkin)
harvest()
