Lecture 14

E21 Computer Engineering Fundamentals

Author

Emad Masroor

Published

October 22, 2026

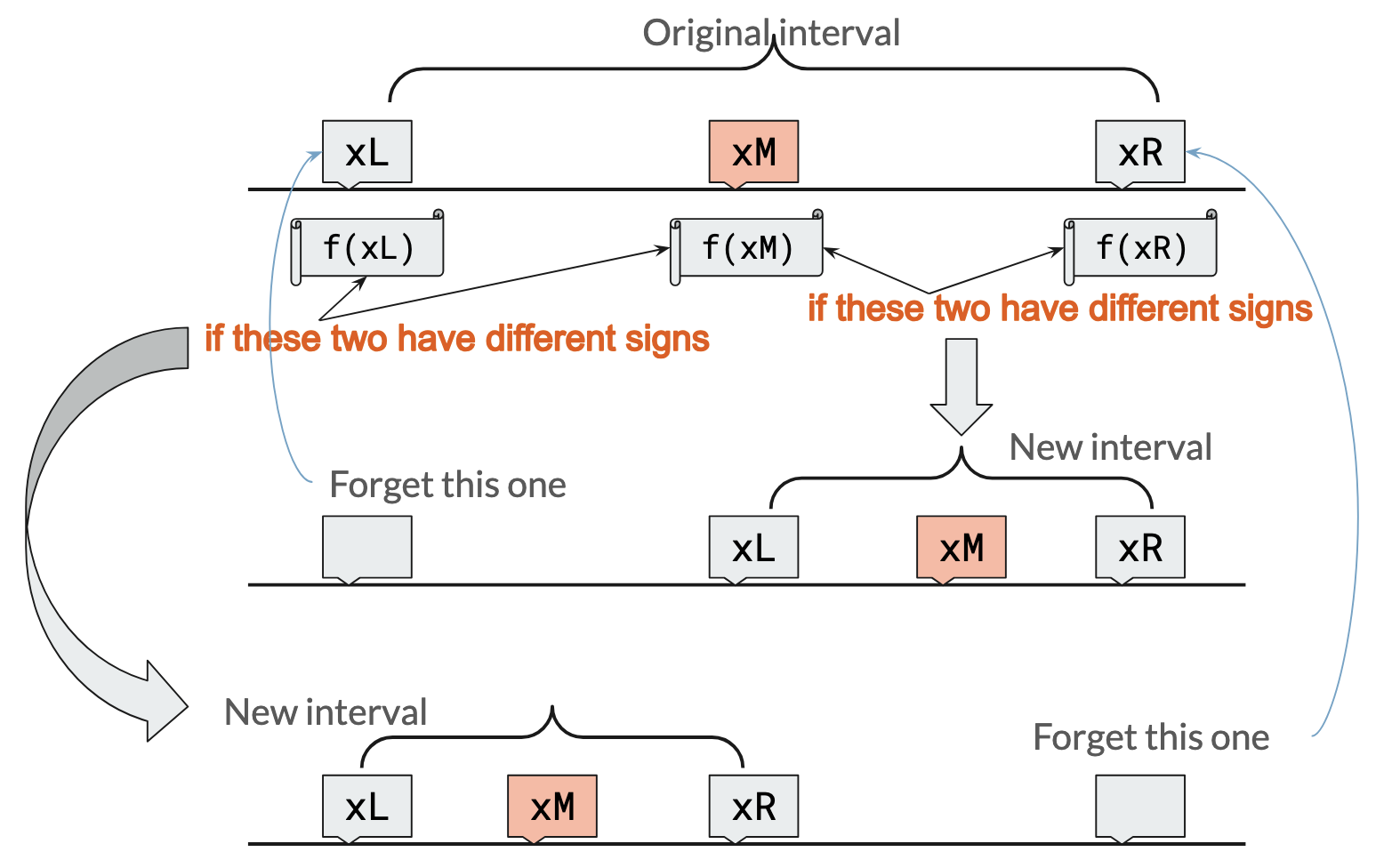

Bisection Method

Convergence rates

At each subsequent bisection step, the bisection window is halved.

General approach to root-finding

In all root-finding approaches, we:

  • start with a guess of where the root might be,
  • work iteratively, repeatedly applying the same formula many times
    • the number of iterations it takes to arrive at a solution is an important measure of how good an approach is.
    • in practice, this is either a while or for loop.
  • hopefully converge to one root.

The Secant Method

Secant Method — Zoomed in

Secant Method — Zoomed in again

Summary of Secant Method

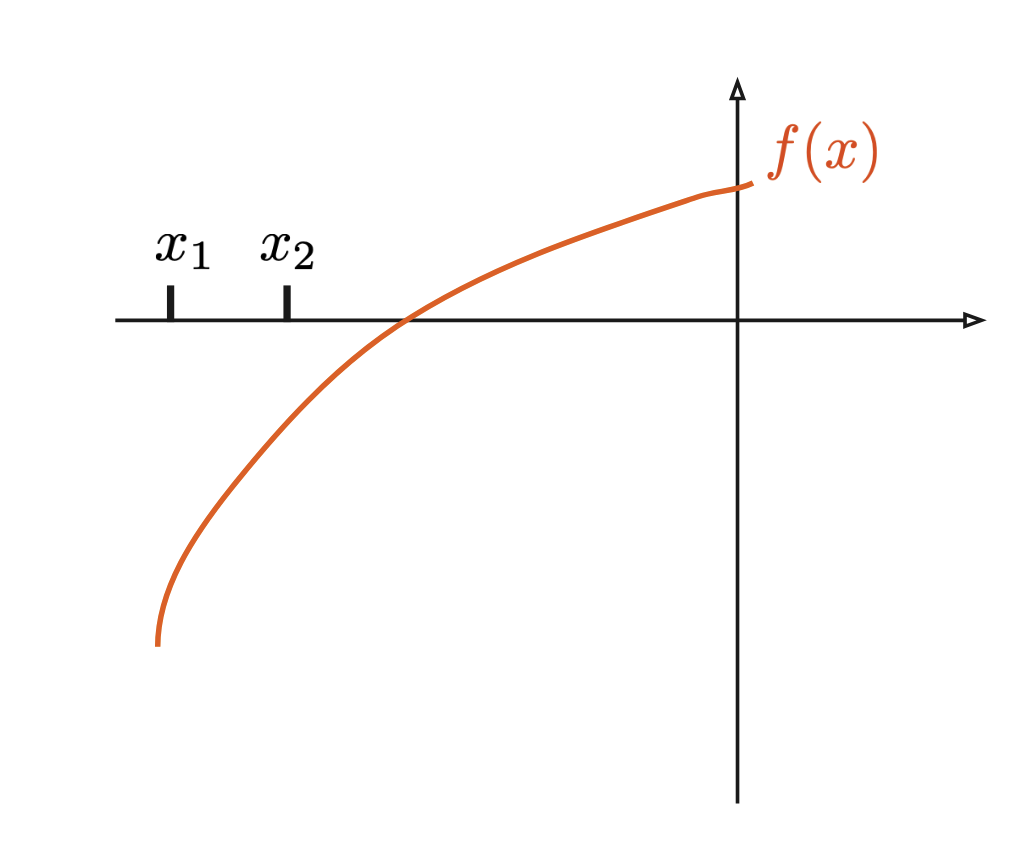

Start with two estimates of the root.

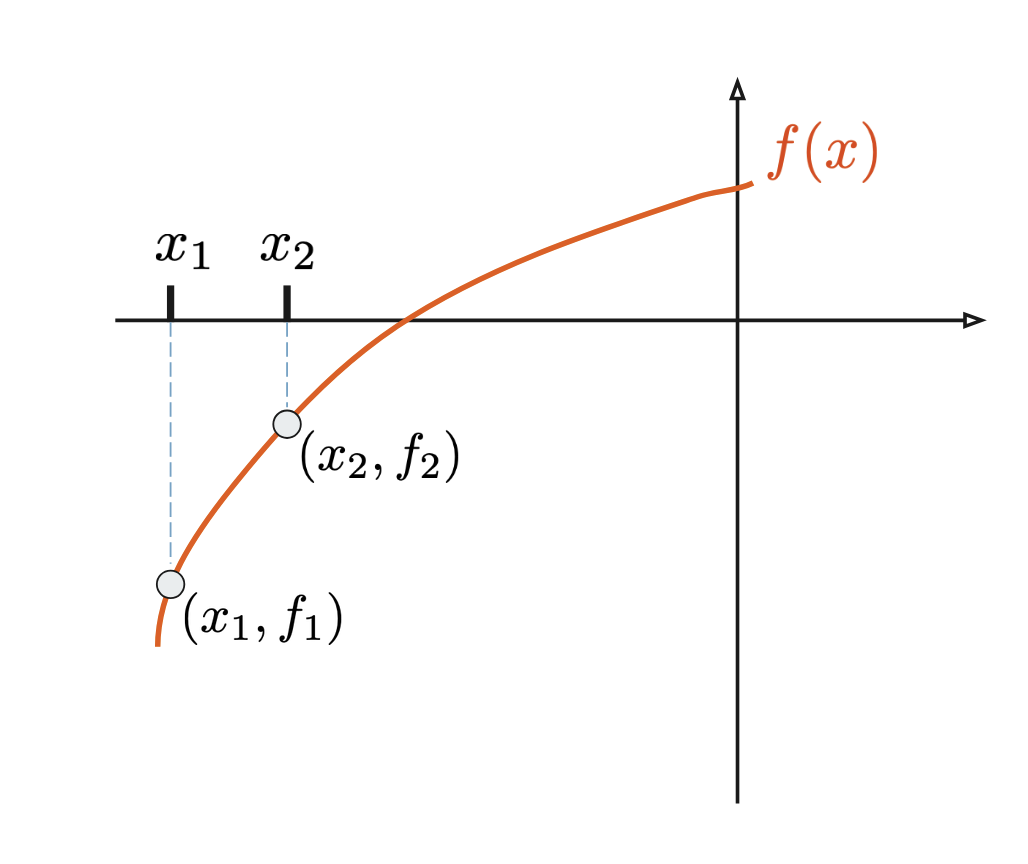

Evaluate the function at both \(x_1\) and \(x_2\)

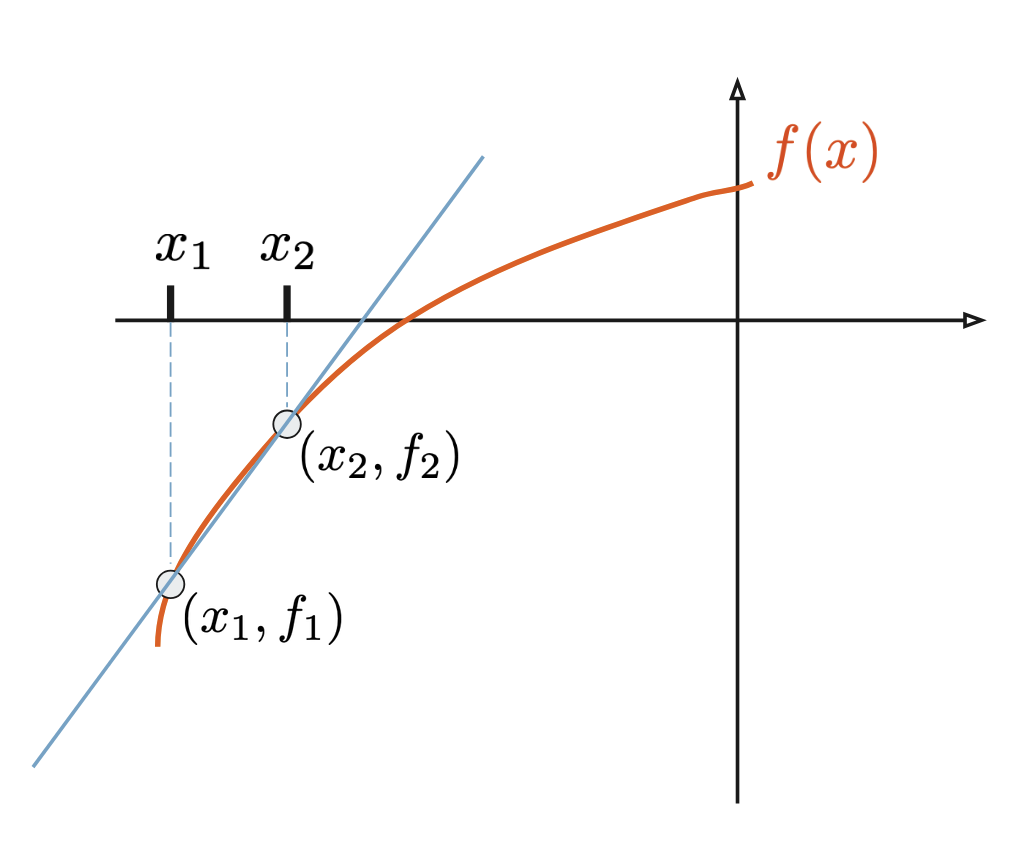

Draw a straight line between the two points. This is an estimate of the function’s behavior.

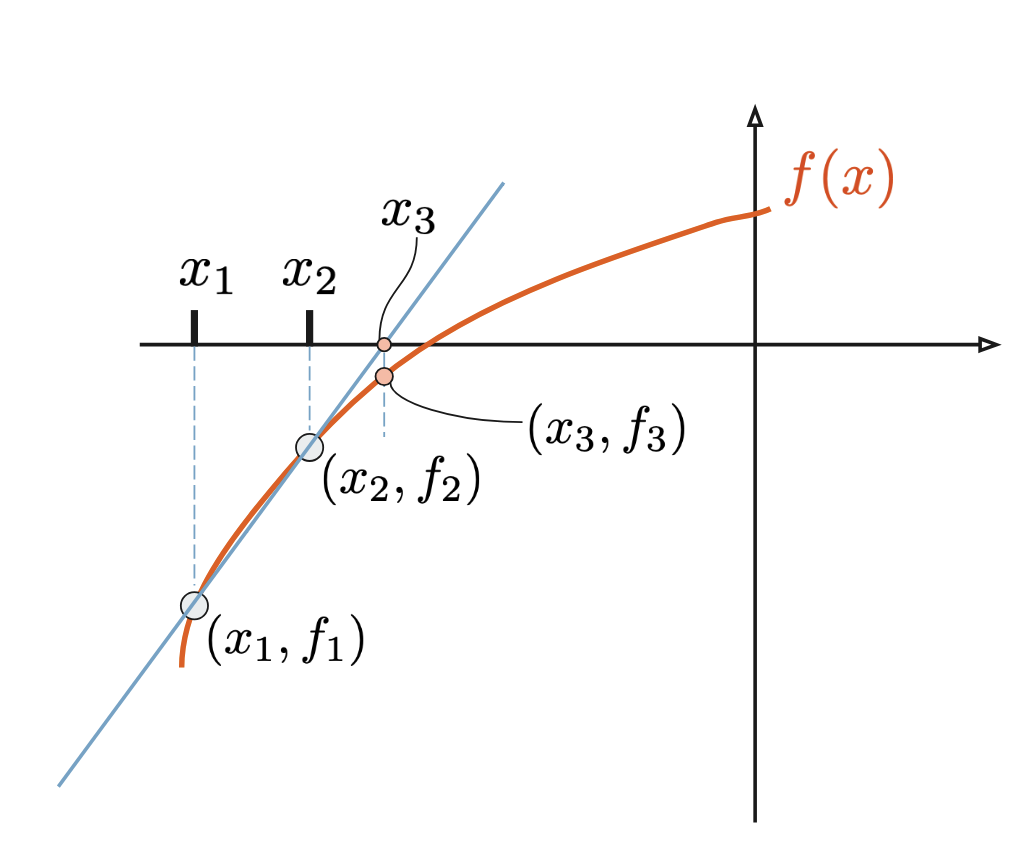

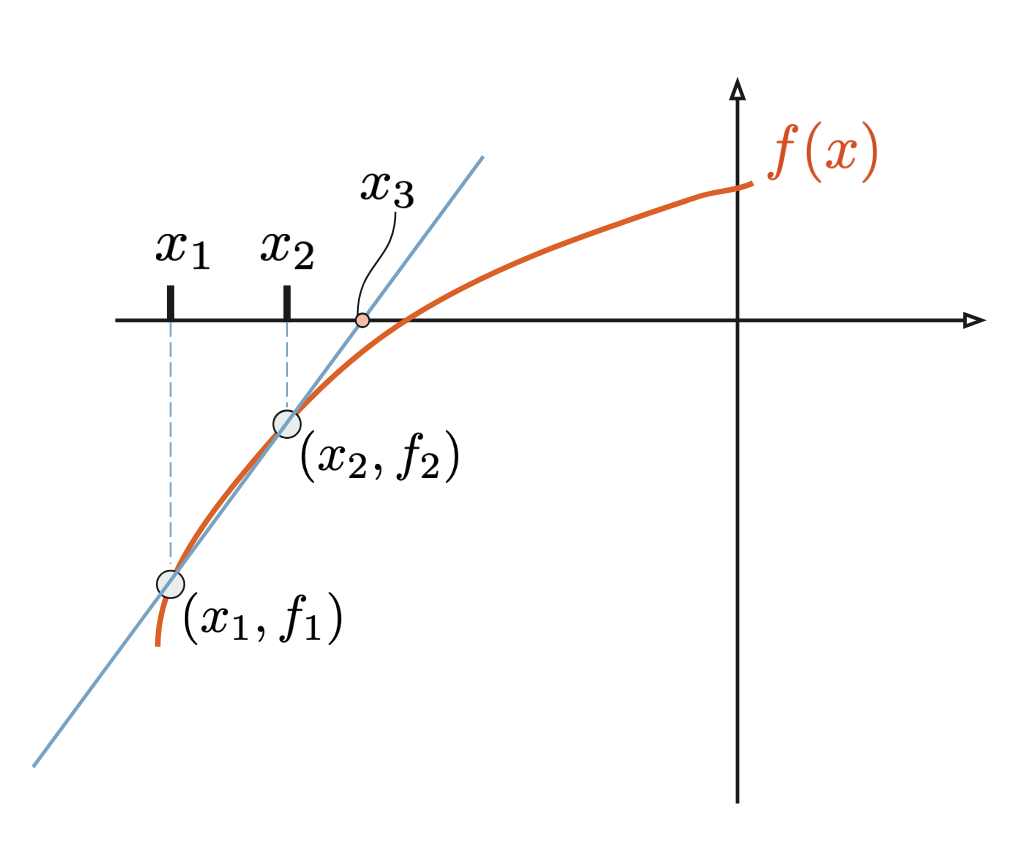

Locate the point \((x_3,0)\) where this line crosses the x-axis. Call this \(x_3\).

Let \((x_3,f_3)\) be a new point. Forget about \((x_1,f_1)\).

Repeat the process above, using the points \((x_2,f_2)\) and \((x_3,f_3)\)

Writing a program for the Secant method

from numpy import linspace
def f(x):
    return -(x+1.5)*(x+2.5)

x1 = -2
x2 = -1

fx1 = f(x1)
fx2 = f(x2)

# Find equation of straight line
# thru (x1,fx1) and (x2,fx2)

m = (fx2-fx1)/(x2-x1)

print(f"Slope of the line btwn 2 points is {m}")

# To find y-intercept, use one of the points
# y = mx + c
# fx1 = m*x1 + c
# c = fx1 - m*x1
c = fx1 - m*x1

# equation of straight line is y = mx + c

# Now find the point where this line intscts
# the x-axis

# y = mx + c
# 0 = m*x_intercept + c
# x_intercept = - c/m
x_int = -c/m

print(f"The line intersects x-axis at {x_int}")

Newton’s Method

Summary of Newton’s Method

Evaluate the function at your first guess.

Make a straight line tangent to \((x_1,f_1)\)

Find location where this line intersects x-axis. This is the 2nd guess, call it \(x_2\).

Repeat.

Comparing Newton’s method with Secant method

  • Newton’s method for finding roots of \(f(x)\) requires that you know \(f'(x)\) already.
  • Secant method requires starting with two points instead of one.
  • If two points very close to each other are chosen for the Secant method, the two methods are nearly identical

Equations for Newton’s method

Derive an equation for \(x_{n+1}\) given \(x_n\)

Equation of the tangent line is \(y = mx+c\),

where \(m = f'(x_n)\). So we get \[y = f'(x_n) x + c\]

and \(c\) can be found by substituting a known point into the equation:

\(\underbrace{f(x_n)}_{\text{y coordinate}} = f'(x_n) \underbrace{x_n}_{\text{x coordinate}} + c \implies c = f(x_n) - f'(x_n) x_n\).

Thus, the equation of the straight line is \(\displaystyle{\color{red}{y}} = \overbrace{f'(x_n)}^{m} {\color{red}{x}} + \overbrace{f(x_n) - f'(x_n) x_n}^{c}\)

The intersection of this line with the \(x\) axis occurs when \(y=0\), i.e.:

\(0 =f'(x_n) {\color{red}{x}} + f(x_n) - f'(x_n) x_n\)

Recognizing that the unknown \({\color{red}{x}}\) is \(x_{n+1}\), we get \[f'(x_n) x_n - f(x_n)= f'(x_n) {\color{red}{x}} \implies \frac{f'(x_n) x_n - f(x_n)}{f'(x_n)} = {\color{red}{x}}\]

\[\implies \boxed{x_{n+1} = x_n - \frac{f(x_n)}{f'(x_n)}}\]

Writing a program for Newton’s method

Pitfalls of Root Finding

If a root-finding program does not find a solution, it could be because:

  1. the equation \(f(x)=0\) has no solution
  2. a solution exists but the program wasn’t able to find it
  3. a solution is found but it’s not the desired solution
  4. too many iterations are needed to arrive at the solution

A well-executed numerical method can solve problems 2-4 but cannot solve problem 1.

Example — Finding the wrong root

Suppose an equation is known to have multiple solutions, but only one of them is physically meaningful. A root-finding program will not necessarily find the solution we care about.

Example — Stuck in a flat place

In the neighborhood of zero-slope points, these methods run into problems.
