1 Forced Response of First-order systems
Consider a single-input, single-output linear system whose transfer function is given by \[\frac{1}{4s+5}.\] We would like to determine the response of this system to an input given by the following function of time. \[ \begin{cases} 2+3t & t >0 \\ 0 & t \leq 0 \end{cases} \]
1.1 Frequency domain
Use the formulae for the coefficients of partial fractions, given in lecture 18, to determine the response in the frequency domain as the sum of three terms.
1.2 Time domain
Use the table of Laplace Transforms to determine the response as a function of time.
1.3 Steady-State vs Transient
- Write down the steady-state portion of the forced response, in the time domain and the frequency domain.
- Write down the transient portion of the forced response, in the time domain and the frequency domain.
1.4 MATLAB
Use Matlab’s tf, step, and impulse functions to generate plots of this system’s step response and impulse response.
Export the MATLAB figures as images and embed into your homework submission. You do not need to make any improvements to the figures, and you should need to type less than thre lines of code to generate the figures.
2 Second-order systems

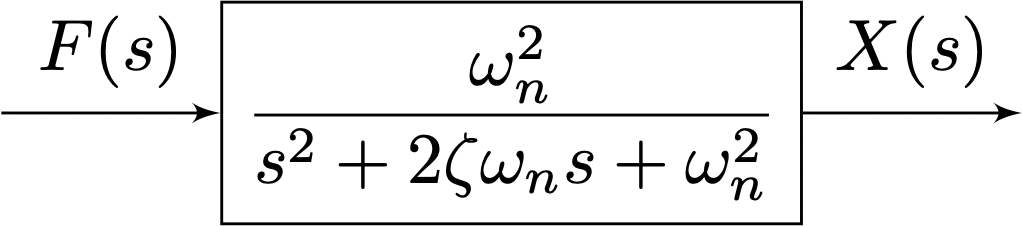

Consider the system described by the block diagram shown below.
2.1 Underdamped case
If the system is underdamped, show that the poles of the transfer function are located at \[-\zeta \omega _n \pm i \omega_n \sqrt{(1-\zeta^2)} \]
2.2 Overdamped case
If the system is overdamped, find the poles of the transfer function in terms of \(\omega_n\) and \(\zeta\).
2.3 Impulse Response
For the following parts, use \(\zeta = 2\) and \(\omega_n = 3\).
2.3.1 Frequency domain
Find an expression in terms of \(s\) for the impulse response of this system in the frequency domain. Leave your answer in terms of square roots, i.e., do not simplify, e.g., \(\sqrt{2}\) as \(1.41\).
Your answer should be the sum of two fractions having the form \(\displaystyle \frac{a}{s-b}\).
‘the system’s [blank] is also the system’s impulse response’
2.3.2 Time domain
Use the table of Laplace Transforms to write down the impulse response of this system in the time domain, and use plotting software to generate a plot of this function against time.
3 Stability
Decide which of the following systems are stable, unstable, or marginally stable. Write a short explanation of how you arrived at your conclusion for each, together with a plot on the complex plane of the roots of the characteristic polynomial of each system.
- A system described by the differential equation \[2 \ddot{x} + 3 \dot{x} + 5 x = 0\]
- A system described by the differential equation \[3 \ddot{x} - 2 \dot{x} + 2 x = 0\]
- A system described by the transfer function \[\frac{1}{(2s+3)(3s-1)}\]
- A system described by the transfer function \[\frac{1}{(s+4)^2+5^2}\]
- A system described by the transfer function \[\frac{1}{s^2 + 7^2}\]
- A system described by the transfer function \[\frac{2s+3}{(s+2-i)(s+2+i)}\]
- A system described by the differential equation \(2 \dot{x} + 5 x = 2t\)
4 Poles
4.1 Partial Fraction Expansions
Use the formulae derived in lecture 18 to determine the numerators of the following partial fraction expansions.
- \[\frac{1}{s^2(3s+4)} = \frac{A}{s} + \frac{B}{s^2} + \frac{C}{s+4/3}\]
- \[\frac{1}{s^2+s+7} = \frac{A}{s-s_1} + \frac{B}{s-s_2}\] where you determine what \(s_1\) and \(s_2\) are as well as the numerators \(A\) and \(B\).
\(A\) and \(B\) may be complex numbers, and if so, you should think about the best way to represent these complex numbers.
4.2 Inverse Laplace Transform
Use the procedure from lecture 18 to determine the inverse Laplace transform of the following functions. Your answer should be a function of time.
- For the following function \[F(s) = \frac{2s-3}{\left(s+\frac{1}{2}\right)^2 + 27},\] find \(f(t)\) in terms of a function that uses both \(\sin\) and \(\cos\).
- For the following function \[F(s) = \frac{1}{s^2+2s+3},\] find \(f(t)\) in terms of a function that uses \(\sin\) and does not use \(\cos\).
