Final Exam
ENGR 12, Spring 2026.
| Exam Date | Sun, May 10, 2026 |
| Duration | Three hours (180 minutes) |
Instructions
Answer all questions. Partial credit is available for all partial answers. Some problems may require less work than others, but they are all worth the same number of points. You are allowed to use a scientific calculator. No external resources, other than the accompanying appendix, may be consulted. Pages 3, 8, 9, 11, 13, 15, 18, 19 and 20 are blank. Please do not separate sheets, but if you do, write your name on the separated sheets and place them in order.
1 Block Diagrams
Consider the block diagram below.
1.1 Identifying Transfer Functions by inspection
- Write down the transfer function between \(Z(s)\) and \(Y(s)\).
- Write down the transfer function between \(Y(s)\) and \(X(s)\).
1.2 Calculating Transfer Functions
Calculate the transfer function that relates the input \(W(s)\) to the output \(Y(s)\) and give your answer as a rational function (i.e., a ratio of two polynomials) in \(s\).
1.3 Relating \(Z(s)\) and \(W(s)\)
Write down an equation, in terms of \(s\), that relates \(W(s)\) and \(Z(s)\). Your equation should not contain \(X(s)\) or \(Y(s)\).
Your equation need not be simplified or put into any particular form. Any correct equation relating \(Z\) to \(W\) in terms of \(s\) will suffice.
1.4 The Order of a system
What is the order of the linear system shown by Figure 1 considered as a whole?
Blank Page
2 Draw Bode Plot
Make a qualitatively accurate sketch of the Bode plot for a system whose transfer function is \[T(s) = \frac{s/1000+1}{10s+1}\]
3 Stability
Write down either the differential equation or the transfer function for a second-order system that is unstable. Briefly show how you know that this system is unstable.
4 Free Response of Second-order systems

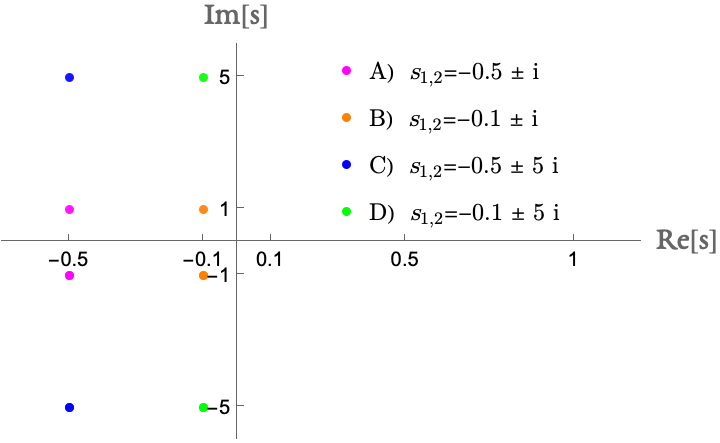

Four second-order linear systems, labeled A, B, C and D, are to be compared regarding their free response when initialized with identical initial conditions. For each system, the transfer function has exactly two complex conjugate poles given by \[s_{1,2} = r \pm i \omega_d,\] where \(r\) is the real part of the pole and \(\omega_d\) the imaginary part of the pole. The values of \(s_{1,2}\) for each system are labeled on the following diagram, which shows the real and imaginary parts of the poles of each system on the horizontal and vertical axes respectively.

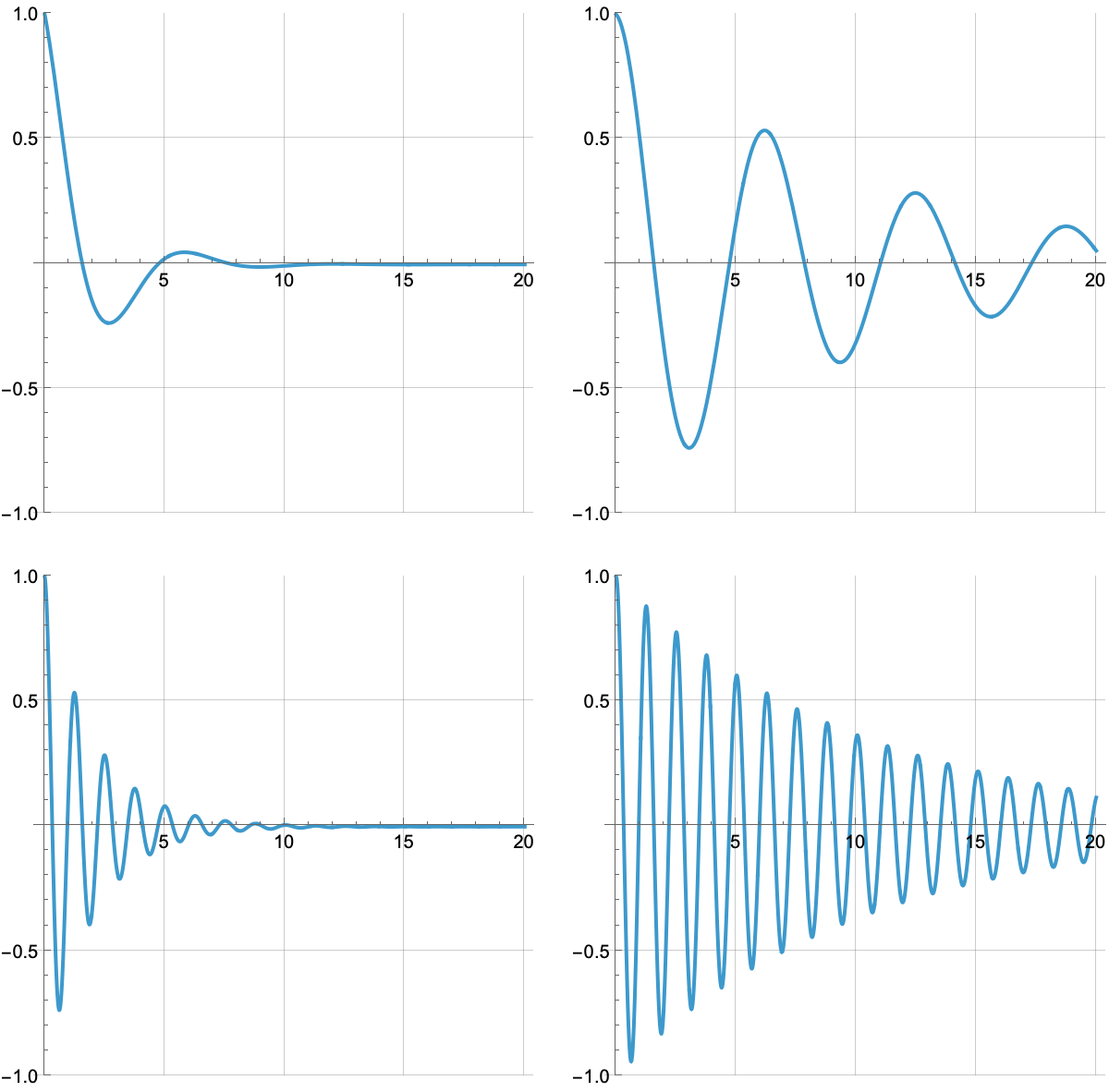

The free response of all four systems has been plotted against time in Figure 4, without labels showing which system corresponds to which graph. Label each panel of Figure 4 with letters A through D. There is only one label for each graph, and each graph has a label.
Correct labels will receive full credit. If one or more labels are incorrect, partial credit may be given for other work.
The following two pages are blank.
Blank Page
Blank Page
5 Spring-Mass Systems
Consider the system shown in Figure 5. A box of mass \(m\) is supported on frictionless rollers and is connected by a dashpot to the wall on the right and by a spring to a massless bar on the left, which also moves frictionlessly. The massless bar has position \(x_{\text{in}}\) and the mass has position \(x\), such that when \(x=x_{\text{in}}=0\), there is no compression or extension in the spring.
Considering the inputs to this system to be \(f_a\) and \(x_{\text{in}}\), write down the state-space equations for this system using the form \[\begin{aligned} \dot{\mathbf{x}} &= A \mathbf{x} + B \mathbf{u} \\ \mathbf{y} &= C \mathbf{x} + D \mathbf{u} \end{aligned}\] where the inputs are \(f_a\) and \(x_{\text{in}}\) and the outputs are: (1) the total compressive force on mass \(m\) and (2) the distance between the massless bar and the mass \(m\).
In your answer, you should fully specify the matrices \(A\), \(B\), \(C\) and \(D\), as well as the vectors \(\mathbf{x}\), \(\mathbf{u}\) and \(\mathbf{y}\).
Blank Page
6 Impulse and Step Functions
Consider the circuit shown below.
Initially, there is no energy stored in the capacitor. If the voltage source \(v_{\text{in}}(t)\) is given by the sum of the following two functions:
- A unit impulse input at time \(t=2\), and
- A unit step input starting at time \(t=4\),
Sketch a quantitatively accurate graph of the voltage across the capacitor, \(v_c\), as a function of time, on the following axes.
Blank Page
7 ‘Pulse response’
An RLC Circuit, shown in Figure 8, has a variable input voltage \(v_{\text{in}}\) given by a ‘pulse’ function \[ v_{\text{in}}(t) = \begin{cases} 0 & t < 0 \\ 2 & 0 \leq t < 20 \\ 0 & t \geq 20. \end{cases} \] It is described by the equation \(LC \ddot{v}_{c} + RC \dot{v}_c + v_c = v_{\text{in}}\)
The voltage across the capacitor is initially \(0.0\) Volts.
On Figure 9, sketch a qualitatively accurate graph of the voltage across the capacitor, \(v_c\), against time.
Blank Page
8 The Fourier Transform and Bode plots
8.1 MATLAB’s fft function

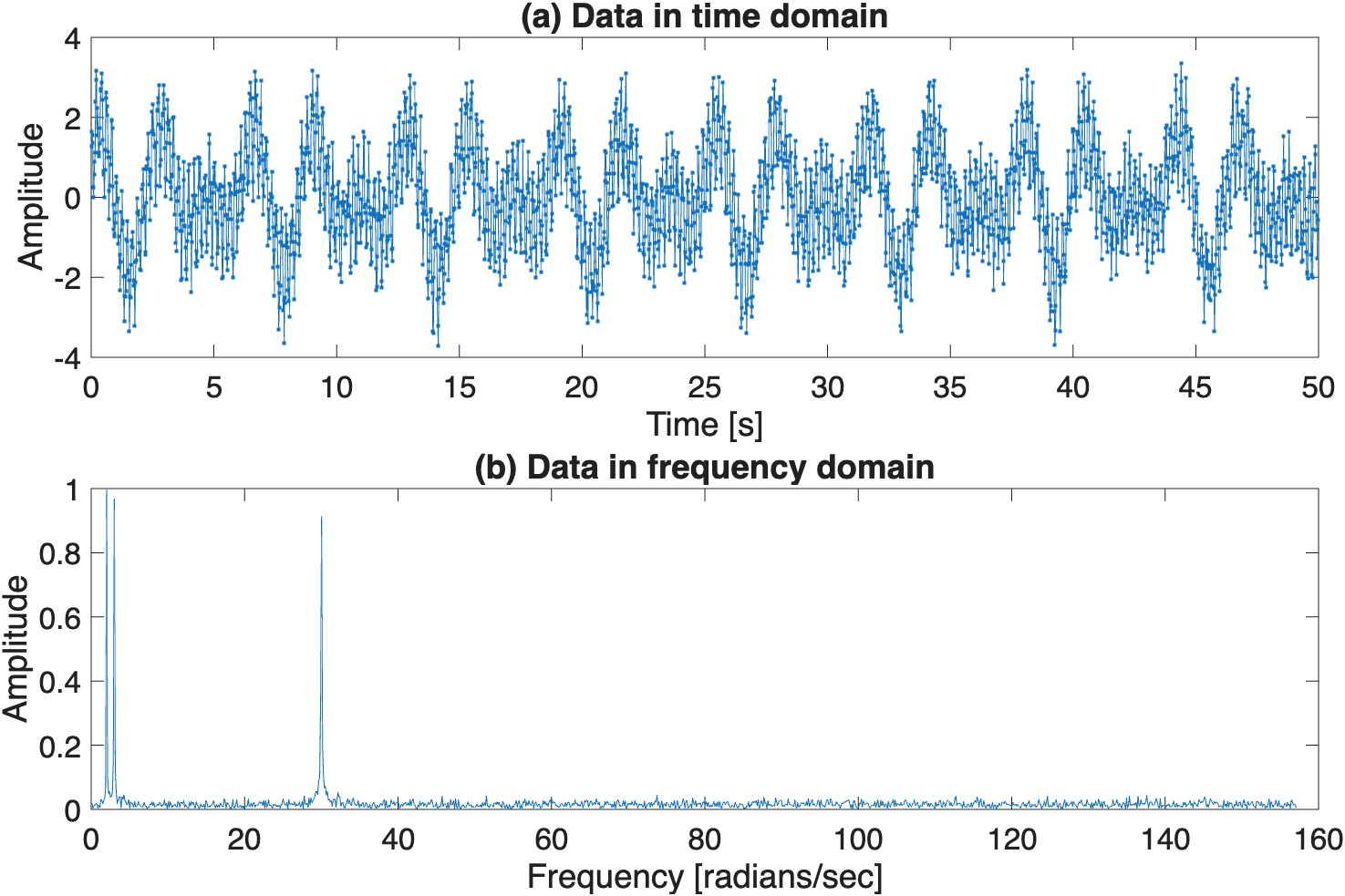

MATLAB’s fft function, which stands for ‘Fast Fourier Transform’, can be used to extract the frequency content of a signal. In Problem Set 13, we saw that fft can be used to transform data from the time domain (panel (a) of Figure 10) to the frequency domain (panel (b) of Figure 10).
Your task is to determine what the corresponding frequency-domain plot would look like if fft were used on the function shown in Figure 11. Make a sketch on Figure 12.
The numerical values on the vertical axis of Figure 12 are not important, but the relative values of different peaks is important. The numerical value on the horizontal axis is important.
8.2 Bode Plot as filter
We would like to design a first-order linear system such that when the signal \(f(t)\) from Figure 11 is provided to it as input, the high-frequency signal is attennuated (i.e., reduced in amplitude) and the low-frequency signal is maintained at or near the original amplitude. Draw the Bode plot for such a first-order linear system on the axes shown in Figure 13, identify the corner frequency, and write down the transfer function associated with this linear system.
Blank Page
Blank Page
Blank Page
